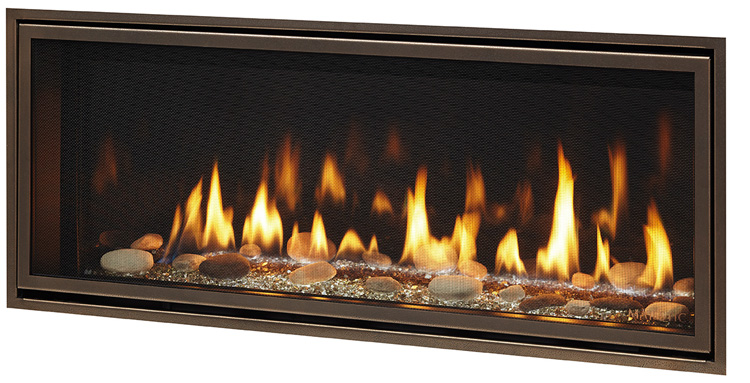

Echelon II 36″ top direct vent fireplace with IntelliFire Plus Ignition System (NG)

SPECIFICATIONS

Dimensions

Width - 17 1/8 | Height - 41 3/4
Length - 46 3/16 | (Inches)

Model # HHT ECHEL36IN

BTU - 17,500 to 30,000
Ignition type - NG
Glass Viewing Size - 35 1/2 W x 12 1/2 H
Venting type & size - Requires 8" DVP pipe. Must have a 24" minimum vertical vent before attaching a 90?? elbow to unit. See venting section of manual.. Approved for use with PVLP-SLP & PVI-SLP-B with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.
